Core Handling
Core Handling
- Core Handling 1
- Core Handling 2
- Core Handling 3
Product Description

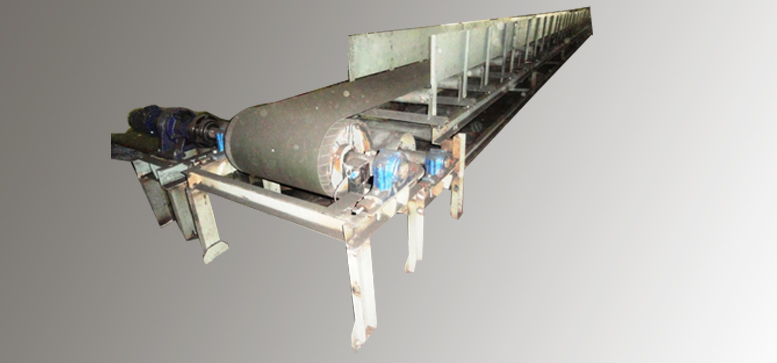

This conveyor is designed to convey cores of Foundry industries from one place to other. It is supplied to a Foundry industry. It is made with quality raw material (Mild Steel). Main structure is made with rectangular tube for better strength. Belt is made to move on plate support.
Product Details:
- LOAD CARRYING CAPACITY - 50 KG PER METER
- LENGTH - 1.5M
- WIDTH - 750 MM
- BELT PVC green Belt, 3MM thk, 420MM width.
- HEIGHT - 130MM
- SPEED - 5M/MIN.
Features :
- Best performance
- Optimum Strength
- Rugged design
- Low maintenance
- Longer life
Application Areas :
- Foundry Industries, Automobile Industries
Product Description
This conveyor is designed to convey cores of Foundry industries from one place to other. It is supplied to a Foundry industry.
Product Details:
- LOAD CARRYING CAPACITY - 50 KG PER METER
- LENGTH - 3M TO 6 M
- WIDTH - 500 MM TO 1500 MM
- BELT PVC green Belt, Rubber Belt.
- SPEED - 5M/MIN TO 10M/MIN.
Features :
- Optimum Strength
- Rugged design
- Low maintenance
Application Areas :
- Foundry Industries, Automobile Industries
Product Description
This conveyor is designed to convey cores of Foundry industries from one place to other. It is supplied to a Foundry industry.
Product Details:
- LOAD CARRYING CAPACITY - 50 KG PER METER
- LENGTH - 3M TO 6 M
- WIDTH - 500 MM TO 1500 MM
- BELT PVC green Belt, Rubber Belt.
- SPEED - 5M/MIN TO 10M/MIN.
Features :
- Robust structure
- Sturdy construction
- Optimum Strength
- Rugged design
- Low maintenance
- Longer life
Application Areas :
- Foundry Industries, Automobile Industries
