Bag Handling
Bag Handling
Product Description

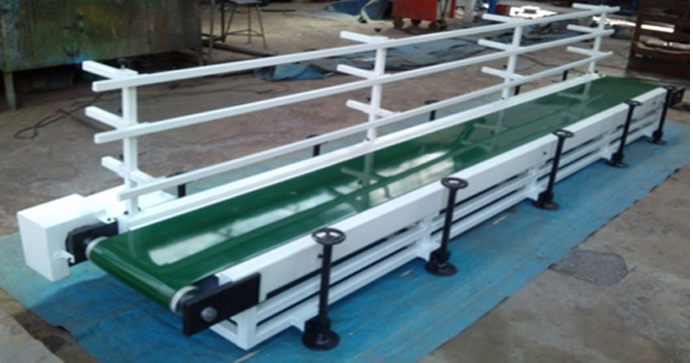

This conveyor is designed to convey paper chemical material in bag from one place to other.It is supplied to a packaging industry. it is used to convey bag size 600Lx200Wx680H.
Conveyor is made of good quality Mild steel material. Structure is made with square tube giving rigidity to machine. Conveyor is mounted on a threaded shaft and wheels are provided for height adjustment. One side support is provided to support bag transfer. Support is also of adjustable as per customer bag width.
Product Details:
- LOAD CARRYING CAPACITY - 100 KG PER METER
- LENGTH - 4M
- WIDTH - 500 MM
- BELT PVC green Belt, 3MM THK
- BELT WIDTH - 400 MM
- HEIGHT - 500±175
- SPEED - 5M/MIN
Features :
- Customised design
- Height Adjustment facility
- Optimum strength
- Rugged design
- Low maintenance
Product Description

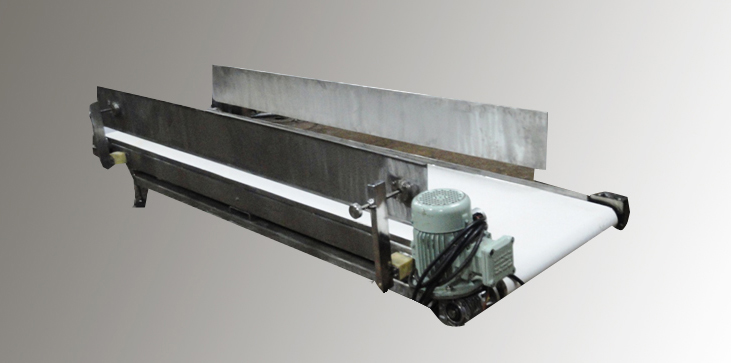

This conveyor is designed to convey bag for automation purpose in industries from one place to other. It is supplied to a Automation industry. it is built with good quality raw material ( Stainless Steel 304). Conveyor is mounted on levelling pads for height adjustment. width adjustable Supports are provided for ease in handling of bags.
Product Details:
- LOAD CARRYING CAPACITY - 50 KG PER METER
- Material - Stainless Steel 304
- LENGTH - 4M
- WIDTH - 1MM
- BELT PVC green Belt, 750 MM width.
- SPEED - 5M/MIN TO 10M/MIN
Features :
- Robust structure
- Sturdy construction
- Optimum strength
- Rugged design
- Low maintenance
- Longer life
