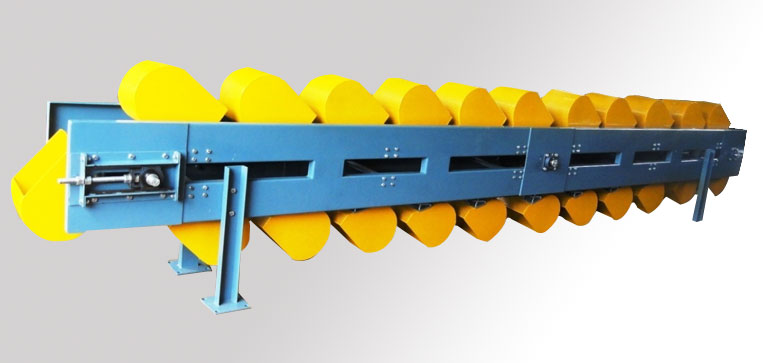

This conveyor is also called Sludge Skimmer. As the name indicates it is designed to convey sludge in sump of spray paint plant from sump to the place where sludge is going to be collected in trolley placed on elevated place and then from trolley it is disposed as per company instructions.. It is supplied to a solution provider company of paint manufacturer. it is used to convey sludge of paint residue collected in a sump. Conveyor is made of good quality Mild steel material. Structure is made with fabricated c section giving rigidity to machine. Conveyor is mounted on support structure made of ISMC and mounted on the required place at an inclination suitable for its designed purpose. The objective of this type of conveyor is to achieve vetical conveying requirements while using the least amount of floor space.
Product Details:
LOAD CARRYING CAPACITY - 10 KG PER BUCKET
LENGTH - 6.5M
WIDTH - 2M
BUCKET -PERFORATED SHEET, 3MM THK
WORKING WIDTH -300 MM
HEIGHT -1MM
SPEED - 5M/MIN
Features :
Customised design
Height Adjustment facility
Optimum strength
Rugged design
Low maintenance
Application Areas:
For conveying materials in Paint manufacturing industries, agricultural industies and vertical conveying applications of Bulk materials.
